Admiralty Brass Tubes
Product Details:
X
Product Description

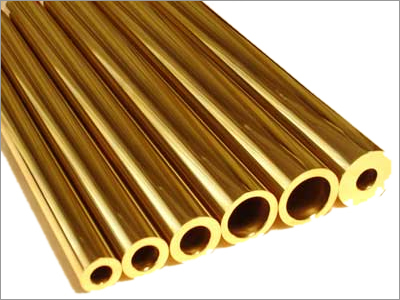

Admiralty Brass Tubes
| STANDARD | BS 2871 PART3 | ASTM B 111 | DIN 1785 | NFA 51 102 | JIS H3300 | IS 1545 | EN 12451 |
| SYMBOL | CZ111 | C 44300 | CuZn28Sn1 | CuZn29Sn1 | C 4430 | CuZn29Sn1As | CuZn28Sn1AS |
| Cu | 70.0 - 73.0 | 70.0 - 73.0 | 70.3 - 72.5 | 70.0 - 73.0 | 70.0 - 73.0 | 70.0 - 73.0 | 70.0 - 72.5 |
| Sn | 1.0 - 1.5 | 0.9 - 1.2 | 0.9 - 1.3 | 0.9 - 1.2 | 0.9 - 1.2 | 1.0 - 1.5 | 0.90 - 1.3 |
| Pb | 0.07Max | 0.07Max | 0.07Max | 0.07Max | 0.07Max | 0.07Max | 0.05Max |
| Ni | - | - | 0.1Max | - | - | - | 0.10Max |
| Fe | 0.06Max | 0.06Max | 0.07Max | 0.06Max | 0.06Max | 0.06Max | 0.07Max |
| Zn | REM'DER | REM'DER | REM'DER | REM'DER | REM'DER | REM'DER | REM'DER |
| As | 0.02 - 0.06 | 0.02 - 0.06 | 0.02 - 0.035 | 0.02 - 0.06 | 0.02 - 0.06 | 0.02 - 0.06 | 0.02 - 0.06 |
| P | - | - | 0.01Max | - | - | - | 0.01Max |
| Mn | - | - | - | - | - | - | 0.10Max |
| TOTAL IMPURITIES MAX | 0.3Max | - | 0.1 Max | 0.3Max | - | 0.3Max | 0.3Max |
| - | - | - | - | - | - | - | |
| - | - | - | - | - | - | ||
| CONDITION | O | 061 | F36 | - | O | O | R320/H060 |
| TA | - | F32 | - | - | TA | R360/H060 | |
| M | - | - | - | - | HD | - | |
| YIELD STRENGTH N / MM2 | - | 105Min | 140 - 220 | - | - | - | 100Min |
| - | - | 100 - 170 | - | - | - | 140Min | |
| - | - | - | - | - | - | - | |
| TENSILE N / MM2 Minimum | - | 310Min | 360Min | - | 315Min. | 375Max. | 320Min |
| - | - | 320Min | - | - | 340Min. | 360Min | |
| - | - | - | - | - | 385Min. | - | |
| ELNG'TION Percent (%) Minimum | - | - | 45Min. | - | 30Min. | - | 55Min |
| - | - | 55Min. | - | - | - | 45Min | |
| - | - | - | - | - | - | - | |
| HARDNESS HV 5 | 75Max. | - | - | - | - | 80 Max. | 60 - 90 |
| 80 - 105 | - | - | 80 - 120 | - | 80 - 105 | 80 - 110 | |
| 150Min. | - | - | - | - | 130Min. | - | |
| GRAIN SIZE mm(75X) | - | 0.01 - 0.045 | - | 0.01 - 0.045 | 0.01 - 0.045 | 0.01 - 0.045 | 0.01 - 0.05 |
| 0.05Max. | - | - | - | - | 0.01 - 0.05 | - |
The Tubes can be ordered to any other National and International Specification.
